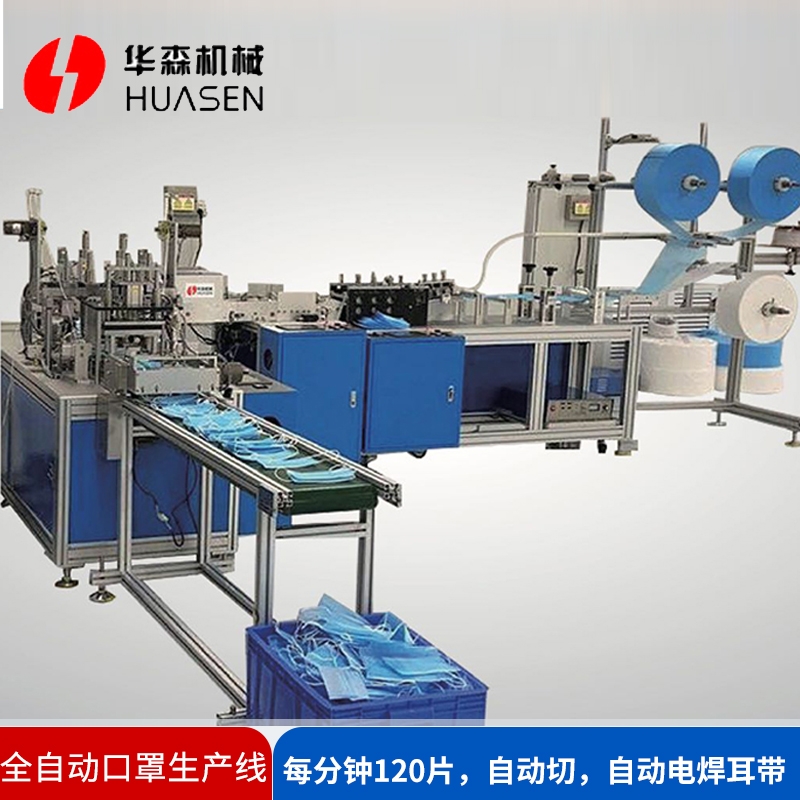

全自动一次性口罩机 一拖一口罩生产线设备
一．用途与特点：USE AND CHARACTERISTICS
1. 适用于医用、民用3层口罩自动化生产。
It is suitable for the automated production of medical and civilian 3 layers masks.
2. 3层面料自动对边，超声波连续点焊成型，自动切片，自动堆垛。
Three layers of fabrics are automatically edged ,ultrasonic continuous spot welding forming, automatic slicing and stacking .
3. 全伺服控制，可高速运转，效率可达120片/分钟。
Full servo control,high-speed operation, theefficiency can be up to 120 pieces/min.
4. 采用一拖一设计，结构紧凑，性能可靠，节省人工。
Adopting one-for-one design ,compact struture ,reliable performance and labor saving.
5. 耳带装配采用自动送料自动切断自动焊接，一次成型。
The ear straps are assembled by using automatic feeding, automatic cutting,and automatic welding.
6. 自动输送鼻夹条，自动切断，自动定位。
Automatic nose bridge bar transfer, automatic cut-off, automatic positioning.
二．主要技术参数：TECHNICAL SPECIFICATION
|
型号 |
Model |
HSPM-2020A |
HSPM-2020A |
|
生产效率 |
Working efficiency |
120片/分钟 |
120pcs/min |
|
适用产品规格 |
Applicable product specifications |
175*95mm |
175*95mm |
|
适用材料 |
Applicable materials |
PP无纺布复合纤维 |
PP Non-woven composite fiber |
|
适用层数 |
Number of applicable layers |
3层 |
3layers |
|
主电机功率 |
Main motor power |
1.5KW |
1.5kw |
|
主超声波功率 |
Main ultrasonic power |
2.6KW |
2.6kw |
|
耳带超声波功率 |
Earband ultrasound power |
2KW*2=4KW |
2kw*2=4kw |
|
总功率 |
Total power |
11KW |
11kw |
|
气源 |
Gas source |
0.5-0.8Mpa |
0.5-0.8Mpa |
|
外形尺寸 |
Dimensions |
4500*4000*18000mm |
4500*4000*1800mm |
